Applicazione
The cables are designed for medium frequency data or telephone systems, suitable for indoor or outdoor insulations.
Norme
• TIA/EIA-568B
• IEC 61156-4
• UL-444
• ANSI/ICEA S-80-576
Costruzione
Conduttori
Solid annealed bare copper sized 0.5mm (24 AWG) as per ASTM-B3/class 1 of IEC 60228
Isolamento
Solid polyethylene as per ASTM D 1248/IEC 60708
Coppie intrecciate
Insulated conductors are twisted into pairs with varying lay length to minimize crosstalk

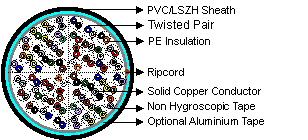

Cavo Core Assemblea
The 50-pair cable is composed of 4 units having 12 or 13 pairs each. All other cables are composed of 25-pair units. Units are identified by colour coded binders
Core Wrapping
Non-hygroscopic dielectric tape fully enclosing the core with an overlap
Schermo (optional)
An optional Aluminium/Polyester tape placed in contact with solid copper drain wire may be provided as an option
Guaina
PVC or LSZH
Ripcord
Nylon ripcord may be placed parallel to the cores to facilitate sheath removal
Proprietà elettriche
Nominal Conductor Diameter |
mm |
0.5 |
Maximum DC Resistance |
Ω/100m |
9.38 |
Maximum Resistance Unbalance |
% |
5 |
Maximum Capacitance Unbalance pair-to-ground @1KHz |
pF/100m |
330 |
Minimum Worst Pair Structural Return Loss (SRL): |
|
|
Up to 10 MHz |
dB |
12 |
Between 10 and 16 MHz |
dB |
10 |
Impedance @1-16 MHz |
Ω |
85 - 115 |
Maximum Attenuation at 20°C |
|
|
@64KHz |
dB/100m |
0.9 |
@256KHz |
dB/100m |
1.3 |
@512KHz |
dB/100m |
1.8 |
@772KHz |
dB/100m |
2.2 |
@1MHz |
dB/100m |
2.6 |
@4MHz |
dB/100m |
5.6 |
@8MHz |
dB/100m |
8.5 |
@10MHz |
dB/100m |
9.7 |
@16MHz |
dB/100m |
13.1 |
Minimum Worst pair-to-pair NEXT Loss |
|
|
@772KHz |
dB |
43 |
@1MHz |
dB |
41 |
@4MHz |
dB |
32 |
@8MHz |
dB |
28 |
@10MHz |
dB |
26 |
@16MHz |
dB |
23 |
Minimum Relative Velocity of Propagation @10MHz |
dB |
0.585 |
Proprietà meccaniche e termiche
Temperature range during operation (fixed state): -30°C – +70°C
Temperature range during installation (mobile state): -20°C – +50°C
Minimum bending radius: 10 x Overall Diameter (unarmoured cable);15 x Overall Diameter (armoured cables)
Colore Codice
Standard Colour Code is per TIA/EIA 568B or ICEA S-80-576 as given in Colour Code Chart.
Dimensioni e peso
PE INSULATED CATEGORY 3 UTP CABLES
| Cable Code |
Number of Pairs |
Nominal Sheath
Thickness
mm |
Nominal Overall
Diameter
mm |
Nominal Weight
kg/km |
| 0.5mm Conductor, 0.9mm Insulated Wire, UTP, PVC Sheathed, Indoor |
TP568-2YY-10P05-UTPC3 |
10 |
0.9 |
9.5 |
77 |
TP568-2YY-25P05-UTPC3 |
25 |
0.9 |
12.5 |
155 |
TP568-2YY-50P05-UTPC3 |
50 |
1.0 |
17.0 |
260 |
TP568-2YY-100P05-UTPC3 |
100 |
1.1 |
21.5 |
530 |
TP568-2YY-200P05-UTPC3 |
200 |
1.2 |
29.5 |
1100 |
TP568-2YY-300P05-UTPC3 |
300 |
1.3 |
33.5 |
1550 |
| 0.5mm Conductor, 0.9mm Insulated Wire, UTP, LSZH Sheathed, Indoor & Outdoor |
TP568-2YH-10P05-UTPC3 |
10 |
0.9 |
10.0 |
80 |
TP568-2YH-25P05-UTPC3 |
25 |
0.9 |
14.0 |
150 |
TP568-2YH-50P05-UTPC3 |
50 |
1.1 |
16.5 |
280 |
| TP568-2YH-100P05-UTPC3 |
100 |
1.4 |
21.5 |
530 |
| TP568-2YH-200P05-UTPC3 |
200 |
1.7 |
30.0 |
900 |
| TP568-2YH-300P05-UTPC3 |
300 |
1.7 |
36.0 |
1300 |
| 0.5mm Conductor, 0.9mm Insulated Wire, UTP, PE Sheathed, Outdoor |
| TP568-2Y2Y-10P05-UTPC3 |
10 |
0.9 |
9.5 |
80 |
| TP568-2Y2Y-25P05-UTPC3 |
25 |
0.9 |
13.0 |
150 |
| TP568-2Y2Y-50P05-UTPC3 |
50 |
1.0 |
16.0 |
280 |
| TP568-2Y2Y-100P05-UTPC3 |
100 |
1.1 |
21.5 |
550 |
| TP568-2Y2Y-200P05-UTPC3 |
200 |
1.2 |
28.5 |
1050 |
| TP568-2Y2Y-300P05-UTPC3 |
300 |
1.3 |
34.5 |
1550 |
PE INSULATED CATEGORY 3 FTP CABLES
Cable Code |
Number of Pairs |
Nominal Sheath
Thickness mm |
Nominal Overall
Diameter
mm |
Nominal Weight kg/km |
| 0.5mm Conductor, 0.9mm Insulated Wire, FTP, PVC Sheathed, Indoor |
| TP568-2Y(St)Y-10P05-FTPC3 |
10 |
0.9 |
10.0 |
85 |
| TP568-2Y(St)Y-25P05-FTPC3 |
25 |
0.9 |
13.5 |
170 |
| TP568-2Y(St)Y-50P05-FTPC3 |
50 |
1.0 |
17.0 |
300 |
| TP568-2Y(St)Y-100P05-FTPC3 |
100 |
1.1 |
22.0 |
570 |
| TP568-2Y(St)Y-200P05-FTPC3 |
200 |
1.2 |
30.0 |
1120 |
| TP568-2Y(St)Y-300P05-FTPC3 |
300 |
1.3 |
36.6 |
1630 |
0.5mm Conductor, 0.9mm Insulated Wire, FTP, LSZH Sheathed, Indoor& Outdoor |
| TP568-2Y(St)H-25P05-FTPC3 |
25 |
0.9 |
14.0 |
170 |
| TP568-2Y(St)H-50P05-FTPC3 |
50 |
1.0 |
17.5 |
300 |
| TP568-2Y(St)H-100P05-FTPC3 |
100 |
1.2 |
23.0 |
580 |
| TP568-2Y(St)H-200P05-FTPC3 |
200 |
1.6 |
32.0 |
1120 |
| TP568-2Y(St)H-300P05-FTPC3 |
300 |
1.6 |
35.0 |
1320 |
0.5mm Conductor, 0.9mm Insulated Wire, FTP, PE Sheathed, Outdoor |
| TP568-2Y(St)2Y-10P05-FTPC3 |
10 |
0.9 |
11.0 |
85 |
| TP568-2Y(St)2Y-25P05-FTPC3 |
25 |
0.9 |
13.5 |
170 |
| TP568-2Y(St)2Y-50P05-FTPC3 |
50 |
1.0 |
16.5 |
300 |
| TP568-2Y(St)2Y-100P05-FTPC3 |
100 |
1.1 |
22.6 |
570 |
| TP568-2Y(St)2Y-200P05-FTPC3 |
200 |
1.2 |
31.0 |
1070 |
| TP568-2Y(St)2Y-300P05-FTPC3 |
300 |
1.3 |
35.5 |
1570 |
